High-Resolution TIJ ID Code Printing on PCB Boards for Electronics Manufacturers

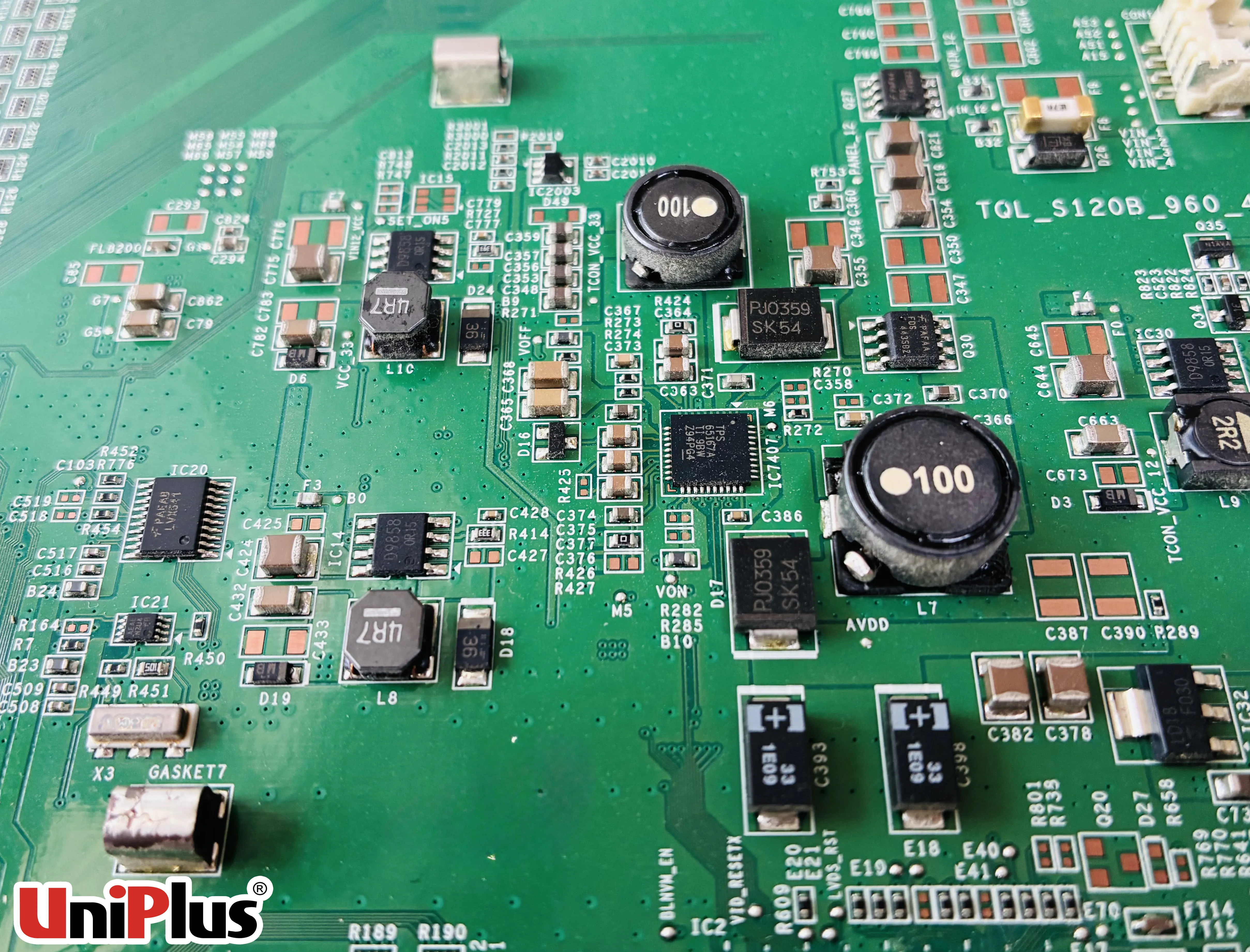

PCB printing is the process of marking serial numbers, lot numbers, date codes or Data Matrix symbols directly onto the surface of a printed circuit board. In most electronics plants, it is not a standalone station but a step between bare-board loading, SMT placement, reflow and test. Once the mark is applied, every downstream reading, test and manufacturing execution system (MES) station involved in traceability must capture that identifier and link it to the right record. This article explains what electronics manufacturers face when adopting TIJ (thermal inkjet) printing. It covers resolution, print timing, ink–surface interaction and line integration.

Defining PCB Marking Requirements: Traceability, Authentication and Automated Reading

Electronics manufacturers assign a unique identifier to each board for three purposes. Each places different demands on print quality.

• Process traceability: The IPC-1782B traceability standard is risk-based. The traceability level for materials and processes is set as agreed between user and supplier (AABUS). A common approach is to encode a unique ID in the symbol and let the MES map it to the full process record. Encoding additional fields in the symbol itself is equally valid, depending on system design.
• Authentication: When a board reaches repair, return merchandise authorization (RMA) or the secondary market, the code is the basis for verifying its origin. If the identifier must support after-sales service or long-term traceability, set durability requirements according to product lifetime.
• Automated reading: On lines that require board-level traceability, several stations can obtain the board ID by reading the code and linking it through the MES. These may include automated optical inspection (AOI), in-circuit test (ICT), functional test and packing. When a read fails, the board must be registered manually or pulled from the line, which reduces line throughput.

These requirements fall into two groups: machine readability and long-term durability. Machine readability involves measurable quality parameters for symbol size, contrast and geometry, with acceptance thresholds set by the customer or application specification. Durability for long-term traceability and authentication covers weathering, chemical and abrasion resistance. These two requirement sets should be specified separately. The same logic applies outside PCBs; we compare marking requirements across sectors in Complete TIJ Printing Applications for Manufacturing, Logistics, E-Commerce and Specialty Industries.

PCB Marking Methods Compared: Labels vs. Laser vs. TIJ

Electronics plants typically use one of three board marking methods, and their cost structures and process constraints differ considerably.

TIJ and laser suit different conditions. Lines running many models, small batches or frequent variable-data changes can include cartridge-based TIJ in their evaluation. Laser is often evaluated when permanent marking and eliminating ink consumables are priorities.

Note that “replacing the cartridge replaces the printhead” applies only when the printhead is integrated into the cartridge. Some systems separate the printhead from the ink supply, and they follow a different maintenance model. An integrated design reduces the effort of cleaning, clearing clogs and replacing a fixed printhead. Conveyors, sensors, encoders and positioning calibration still need routine maintenance.

Can TIJ Print High-Resolution 2D Codes on PCBs?

Feasibility depends on the target code size and the reader’s optical setup, not on the dpi figure alone. Print density is measured in dpi, but beyond that figure, the more practical criteria are module size, the number of dots available per module, and final symbol quality.

How Is the Minimum Module Size for Barcodes and 2D Codes Calculated?

For both Data Matrix (ISO/IEC 16022:2024) and QR Code (ISO/IEC 18004:2024), the smallest unit is the module. The X-dimension is the nominal width of one module, meaning the design value; the printed module will differ from it. Each printed module is built from several ink dots; with too few dots, module edges become stepped and decoding suffers.

At 600 dpi, the center-to-center dot pitch is about 0.042 mm, so a 0.25 mm module contains roughly six dots. This holds only when the actual addressable resolution on that axis is 600 dpi. Available settings vary by controller and print direction, so base the calculation on the equipment’s actual X and Y resolution.

Dot count is only one geometric constraint. Reliable reading also depends on contrast, modulation, grid non-uniformity and fixed pattern damage. These parameters describe contrast consistency, module geometry and finder-pattern integrity. A verifier provides standardized, quantitative grading of these parameters, while reader tests on the actual line confirm real-world performance.

The quiet zone is the clear margin a reader needs around the symbol, and it is easily lost in layout. The two symbologies differ: Data Matrix requires at least one module on all sides, while QR Code requires four. If traces, silkscreen characters or component edges intrude into the quiet zone, the read rate drops even when the code itself is printed cleanly.

Which Verification Standard Applies to 2D Codes on PCBs?

Print quality verification for general 2D codes is based on ISO/IEC 15415:2024. It defines how parameters such as contrast, axial non-uniformity and grid non-uniformity are measured and graded.

Directly marked codes are evaluated as direct part marks (DPM). ISO/IEC 15415 itself notes that for DPM, combining it with ISO/IEC 29158:2025 gives better correlation between measurement and scanning performance. ISO/IEC 29158 explicitly lists ink jetting as a DPM method, so inkjet codes on PCBs fall within this framework.

For PCBs, the key difference is illumination. Solder mask with gloss or specular reflection can contribute to differences between verifier results under standard lighting and actual reader performance. ISO/IEC 29158 provides alternative illumination and matching grading methods, and reports results as a DPM grade rather than an ISO/IEC 15415 grade.

This matters when print quality goes into an acceptance specification. With the wrong verification standard, disputes tend to focus on measurement method rather than on symbol quality.

Choosing Ink for PCB Printing Before and After Reflow

The first decision in PCB printing is not which ink to use but where to place the print station in the line. The dominant process risks differ between the two positions.

Pre-Reflow Printing: Testing Against the Actual Reflow Profile

On bare boards or populated boards that have not yet entered the oven, the mark goes through the full reflow thermal history with the board. The role of J-STD-020 needs to be clear here.

IPC/JEDEC J-STD-020 classifies surface mount devices by moisture/reflow sensitivity. Its Pb-free classification temperatures are 245 °C, 250 °C or 260 °C, depending on package thickness and volume. It defines the thermal history for component classification, not the temperature an SMT line must reach. Actual board temperature should follow the measured reflow profile of that line.

Evaluate the ink in three areas:

• Acceptance criteria: Write them as performance requirements. After the validated reflow profile, the mark must still pass adhesion, contrast, barcode grade and chemical resistance checks. Some physical or chemical change may be acceptable if the final mark still meets the specification.
• Supplier data: Ask the ink supplier for actual heat-resistance data before planning pre-reflow printing.
• Line testing: Run oven tests on your own reflow profile. Profiles differ enough between plants that the same ink may pass one validated profile but fail another.

Post-Reflow Printing: Cleaning Agents and Downstream Coatings

Placing the print station after the last high-temperature process removes reflow exposure but introduces chemical risks. Three conditions need evaluation:

• Flux residue: Ink printed over flux residue may adhere poorly.
• Cleaning agents: Aqueous or semi-aqueous cleaning directly tests the solvent resistance of the dried mark.
• Conformal coating: Any coating applied downstream must be compatible with the mark.

“Post-reflow” does not mean “no further heat.” If selective soldering, baking, conformal coating cure or rework follows, evaluate the ink against the highest thermal exposure.

Post-reflow printing allows more flexibility in ink selection. The trade-off is that traceability starts later in the process, so data from earlier steps must be linked through carriers or other means.

In our own project inquiries at Uniplus, post-reflow printing is the more frequent request. This reflects our case sample only, not an industry ratio.

TIJ Ink Adhesion on PCB Solder Mask

Solder mask is a cured polymer coating. Common photoimageable formulations are epoxy/acrylate systems with low absorbency. On such surfaces, ink adhesion depends mainly on wetting, film formation after drying, and interaction at the ink–solder mask interface. Surface energy affects how well the ink wets and spreads on the surface, so it has an amplified effect here, as does contamination.

Two ink types serve as starting points:

• Solvent-based inks: Typical use: low-absorbency surfaces such as solder mask, metal and plastic. Key risk: adhesion varies with solder mask formulation and surface condition. What to verify: adhesion and chemical resistance on the actual board material.
• Water-based inks (dye/pigment): Typical use: porous or semi-porous materials such as paper and cartons. Key risk: slower drying and weaker adhesion on low-absorbency surfaces. What to verify: drying time, adhesion and abrasion resistance on solder mask with the actual formulation.

Even among solvent-based inks, adhesion varies between formulations and boards. The differences come from surface chemistry and surface energy, shaped by solder mask formulation, gloss, curing conditions and process history. Solder mask color alone does not explain these adhesion differences.

In some of Uniplus’s past test cases, adhesion problems traced back to residual release agents, flux or fingerprint oils on the board. We therefore recommend confirming board cleanliness first, then adjusting ink formulation or print parameters.

Suitable substrates and specifications for Uniplus’s solvent-based, water-based dye and water-based pigment industrial cartridges are listed on the industrial inkjet cartridge product page.

PCB Marking Ink and Electrical Reliability

Adhering well and reading reliably are not enough to qualify an ink for PCBs. Electronic products add another dimension: whether the marking ink itself affects the board’s electrical reliability.

IPC published IPC-4781 in 2008. It covers permanent, semi-permanent and temporary marking inks on PCBs, including serialization and personalization. Its requirements include adhesion, chemical resistance and lead-free soldering conditions. For electrical reliability, it also covers insulation and electrochemical migration: conductive growth between conductors at different electrical potentials, driven by moisture and ionic contamination. The specification states that marking inks shall not degrade board performance or contribute to such growth.

IPC currently lists IPC-4781 as “No Longer Maintained.” It therefore serves as a technical reference framework for evaluating marking ink reliability. New projects should still define verification items based on current customer specifications and the actual end-use environment.

IPC-4781 distinguishes two types of permanent marking ink by contact with conductors:

• Type 1: May have direct metal contact with electrical nodes.
• Type 2: No direct metal contact, such as marks printed over solder mask.

Where the marked area may contact or bridge conductors, additional electrical-reliability qualification may be required. If the ink itself becomes the insulating layer between conductors, it is functioning as a primary dielectric, a role normally filled by solder mask. In that case, IPC-4781 requires it to be qualified as solder mask per IPC-SM-840.

Depending on product use and customer requirements, evaluation may cover board cleanliness, chemical resistance, insulation resistance, electrochemical migration risk, and compatibility with downstream coatings or process materials.

Checklist Before Adding TIJ Printing to an SMT Line

Clarifying the following items before requesting a quotation can save time on repeated trial prints later.

Process

• Print timing: Bare board, after placement, after reflow or after test? Are there further high-temperature or cleaning processes downstream?
• Board surface: Solder mask formulation and gloss, surface finish, and any residual cleaning agents or flux in the print area.
• Throw distance: The printhead-to-board gap, and board height variation during conveying.
• Line speed: Boards per hour and conveyor speed, which affect drying time and print density settings.

Code and reader

• Symbology and size: Data Matrix or QR Code, target X-dimension (the width of one module), and available board area including the quiet zone.
• Reading equipment: Reader model, lens working distance and illumination. Together with symbology, print resolution, substrate and symbol quality, these determine the smallest readable size.

Data and verification

• Data source: Whether serial numbers come from the MES, the enterprise resource planning (ERP) system or the coding controller, and how data is interfaced.
• Verification method: ISO/IEC 15415 for general 2D codes; ISO/IEC 15415 combined with ISO/IEC 29158 for PCB direct part marks, with a defined minimum acceptable grade.
• Reliability requirements: Which customer or internal reliability tests apply, and whether the marked area contacts conductors.
• Sample testing: Trial print with the actual board material, symbology and line speed, then submit for verification.

For differences in printing conditions across industries, compare with the application scenarios in our complete guide to TIJ printing applications, then recalibrate the PCB-specific requirements.

Selecting a TIJ Cartridge Format for PCB Printing

Start with the total mark height, including the required quiet zone. Two cases set the starting format:

• Within the equipment’s actual usable 12.7 mm print range: The half-inch format can be considered on geometric grounds.
• Beyond that range: Evaluate the one-inch format.

In either case, verify X-dimension, data capacity, orientation and the equipment’s usable print area. Uniplus industrial cartridges are available in both half-inch (12.7 mm) and one-inch (25.4 mm) formats.

Equipment-side compatibility is one of the key items electronics manufacturers need to confirm before adoption. Uniplus provides a compatibility verification service. If your equipment uses encrypted chips, you can share the model information during discussions, and we will help evaluate feasible options.

If you are evaluating a PCB printing solution, send us board samples, target code sizes, line speed and planned print timing (before or after reflow). We can then help determine a suitable combination of ink type and cartridge format. Contact the Uniplus technical team or request full specifications for our industrial cartridges.
