What Is TIJ Thermal Inkjet Printing? A Complete Beginner's Guide

TIJ (Thermal Inkjet) printing is one of the fastest-adopted industrial coding technologies in manufacturing today. The technology works by using a heating element to generate a vapor bubble inside the printhead chamber, which propels ink droplets onto the substrate — enabling barcodes, batch numbers, expiry dates, and anti-counterfeit marking.

Why Do Factories Need Printing Equipment?

There are five core drivers behind industrial coding and marking adoption in manufacturing:

Regulatory Compliance Marking

Expiry dates, lot numbers, and ingredient labeling are mandatory requirements for food, pharmaceutical, and medical device industries.

Supply Chain Traceability

Barcodes and QR codes enable precise tracking of every product throughout the supply chain. According to the GS1 global standards organization, barcode resolution and contrast must meet scan-readability standards — a direct design requirement behind TIJ 2.5's 600 DPI specification.

Anti-Counterfeiting and Brand Protection

Invisible ink and serial number printing help brands defend against counterfeiting.

Automated Production Line Integration

Integration with conveyors, sensors, and ERP systems eliminates human marking errors and boosts line efficiency.

Multi-Substrate Marking Needs

From cardboard boxes to metal parts, glass bottles to eggshells — TIJ's multi-ink-type design addresses this variety directly.

TIJ Application Scenarios

The five industries where TIJ technology delivers the strongest results:

Food and Beverage

Eggshell printing, Tetra Pak and aluminum foil packaging expiry marking, beverage can batch coding.

Packaging and Logistics

Carton lot numbers, barcodes, QR code printing, and warehouse traceability marking.

Medical and Pharmaceutical

Drug blister foil (Blister Foil) batch marking, medical packaging anti-counterfeiting printing.

Industrial Manufacturing

Metal part serial coding, glass and ceramic marking, leather and non-woven bag printing.

Electronic Components

PCB batch numbers, part serial numbers, and anti-counterfeit marks — 600 DPI maintains scan accuracy even on small components.

For full ink type and specification options by application, see the Uniplus TIJ 2.5 Industrial Ink Cartridge range.

Industrial vs. Office Ink Cartridges

They look similar — but the specifications are worlds apart. Many people's first instinct when seeing a TIJ industrial ink cartridge is "isn't that just a printer cartridge?" The truth is, industrial and office cartridges are designed for completely different purposes and cannot be used interchangeably.

The Three Core Components of a TIJ Cartridge

Inside every TIJ industrial ink cartridge are three components that determine its performance. Understanding these is the key to evaluating a cartridge manufacturer's technical capability.

Printhead (Print Head)

Determines resolution and dot placement accuracy. According to a peer-reviewed study published on ScienceDirect, the three primary causes of TIJ printhead failure are repeated bubble impact wear on the printhead, material fatigue caused by thermal cycling, and electrical resistance degradation from prolonged heater use — which is precisely why using new, high-quality cartridges is far more reliable than refilling spent ones.

Chip

Handles communication with the printing machine. Version incompatibility causes the device to fail to recognize the cartridge.

Ink

The formulation determines which substrates can be printed, as well as drying speed and durability.

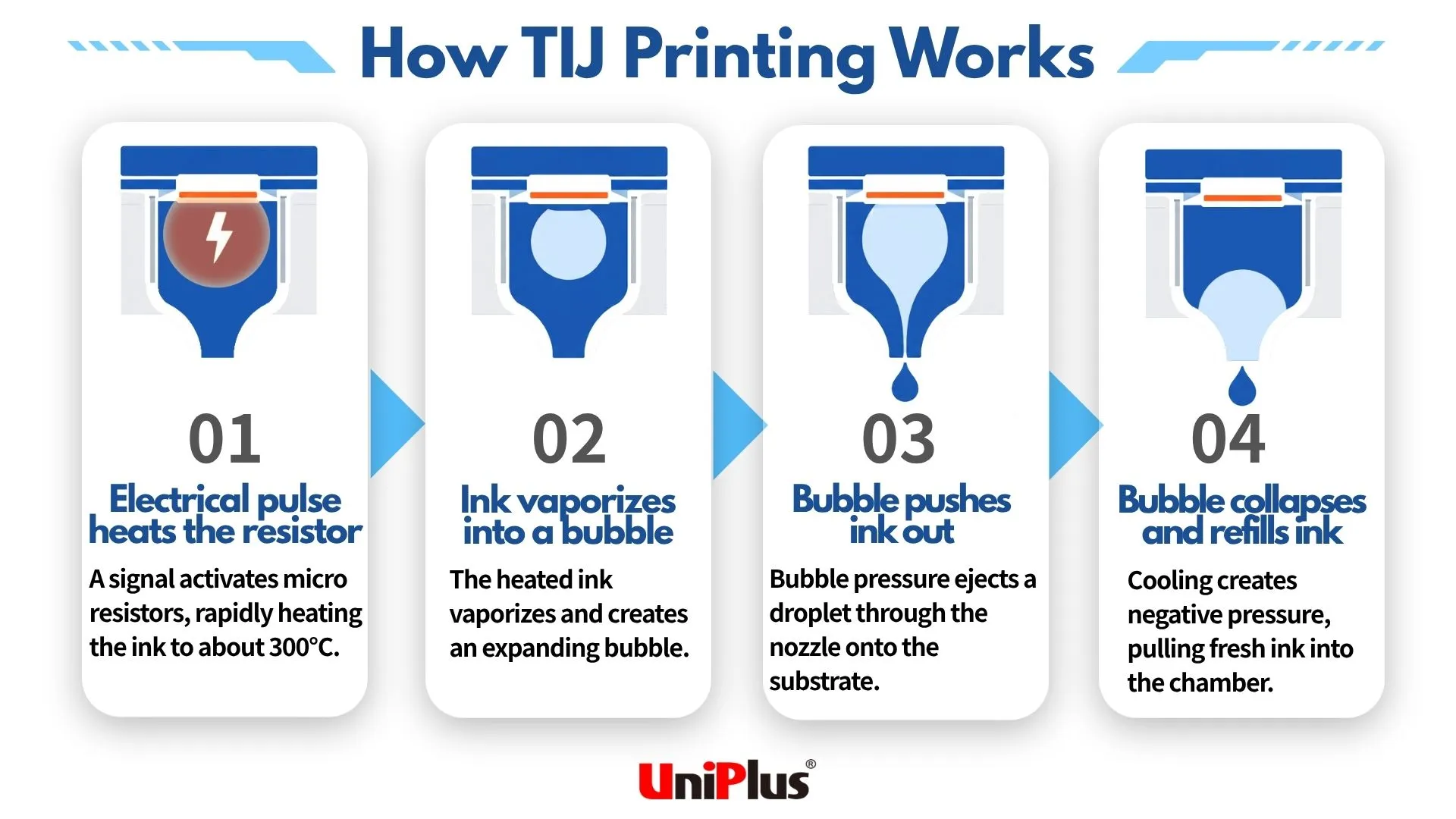

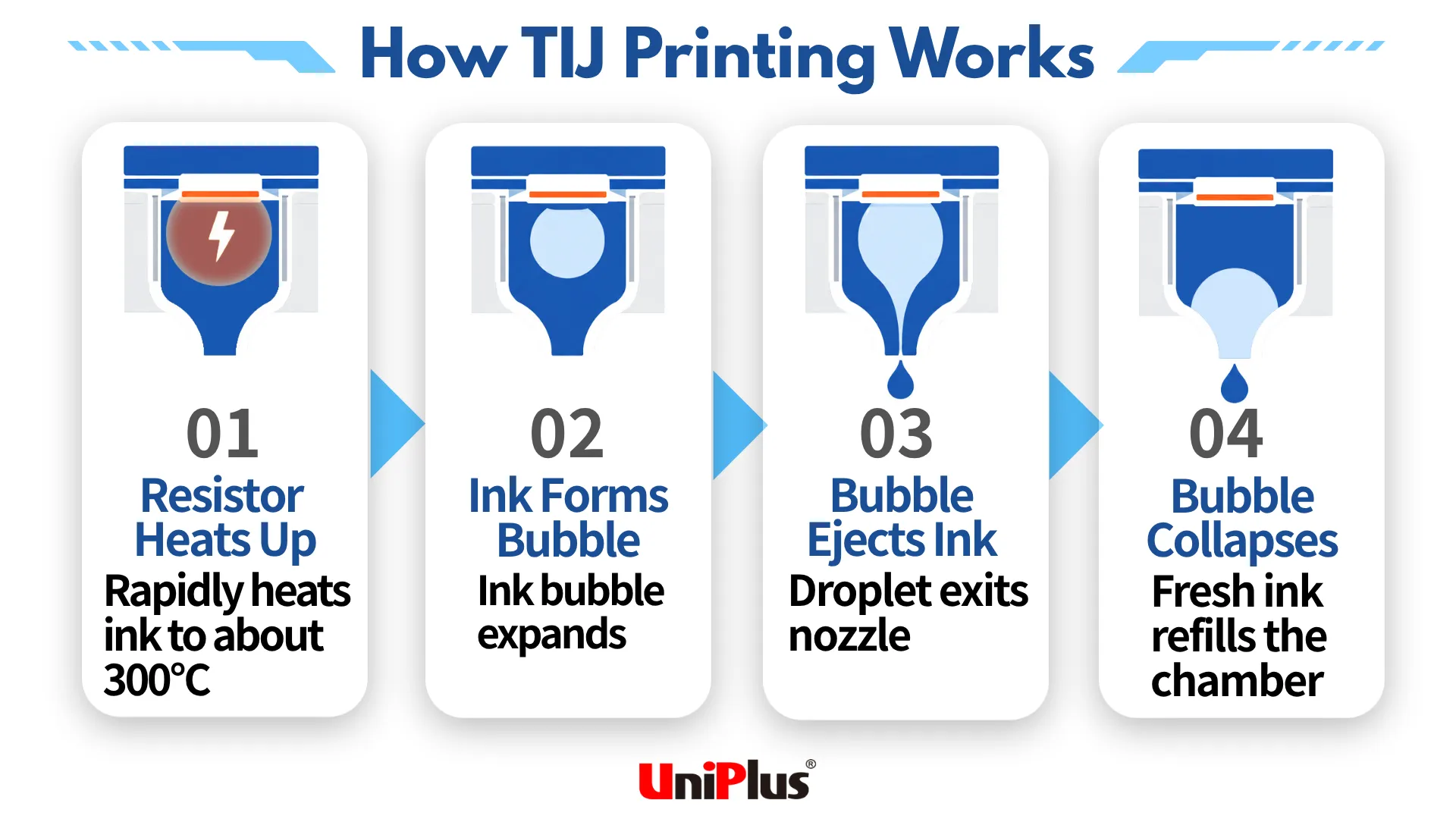

How TIJ Printing Works

What exactly does "thermal" refer to? How does ink fly out of a nozzle? The process runs through four consecutive steps, each cycle completing in a few microseconds:

Electrical pulse heats the resistor > Ink vaporizes into a bubble > Bubble pushes ink out > Bubble collapses and refills ink

This high-frequency repetition of the four-step cycle is what enables TIJ's continuous printing capability.

Uniplus TIJ 2.5 cartridges feature a printhead with tightly controlled droplet size and nozzle placement accuracy, ensuring dot consistency at 600 DPI.

What Is TIJ 2.5?

TIJ 2.5 (Thermal Inkjet 2.5) is the dominant industrial coding standard today, originally established by HP and now the universal benchmark across the industry. Compared to earlier TIJ generations, TIJ 2.5 delivers three critical improvements:

All Uniplus industrial ink cartridges follow TIJ 2.5 specifications, with 600 DPI resolution and 100% factory quality testing on every unit.

"Thermal Inkjet" vs. "Thermal Bubble" — Are They the Same?

This is one of the most common naming confusions in the industry. The answer: they are identical technologies — just different translations and terminology.

"Thermal Inkjet (TIJ)" and "Thermal Bubble Inkjet" refer to the same mechanism: heating ink to form a vapor bubble, then using that bubble's pressure to eject a droplet through the printhead. The universal English abbreviation is TIJ. In Chinese-language markets, "热发泡喷墨" (thermal bubble inkjet) is more common in mainland China, while "熱感應噴印" (thermal sensing printing) is more prevalent in Taiwan — the two are fully interchangeable.

Chip Compatibility Issues

"Replaced the cartridge with a brand-new one — now the machine shows an error and won't print." This is one of the most frequently encountered problems in factory procurement, and the root cause almost always points to the chip.

The chip inside a TIJ ink cartridge performs three functions:

Identity recognition: Tells the machine what cartridge type and ink type has been installed.

Ink level reporting: Allows the machine to display remaining ink volume.

Print parameter transmission: Controls firing current, frequency, and droplet size for each print cycle.

If the chip's communication protocol or version does not match the machine, the device cannot recognize the cartridge — even if the ink is perfectly fine. According to a TIJ system review published in MDPI Technologies, cartridge electronics handle identity and control parameter transmission; any interface incompatibility directly interrupts device communication. Uniplus cartridges use chips compatible with non-encrypted machine communication protocols, validated across mainstream models for a ready-to-use replacement.

Disposable vs. Refillable: Can You Refill TIJ Cartridges?

Technically yes — but industry practice strongly favors using new cartridges. There are three practical reasons:

Printhead Lifespan

The printhead is engineered to match the original ink volume. By the time the ink runs out, the printhead has typically reached the end of its rated service life. Continued use after refilling carries increasing risk of inconsistent print quality.

Ink Compatibility

Refilling with a different brand or formulation may corrode the printhead's internal structure, causing irreversible damage.

Hidden Cost of Line Downtime

The cost of batch marking errors — returns, reprinting, and production line stoppages — far exceeds the price difference between new and refilled cartridges. Uniplus supplies 100% new cartridges. No remanufactured units. Every cartridge completes full quality testing before leaving the factory. If you would like to learn more, feel free to contact us.

Five Common Myths About TIJ Printing

Myth 1: "TIJ printheads fail easily."

Nearly every reported failure traces back to using remanufactured cartridges or incompatible refill ink. With new, correctly formulated cartridges, printhead reliability is consistent and predictable.

Myth 2: "TIJ ink is expensive."

The per-print cost of TIJ is significantly lower than CIJ (Continuous Inkjet). Uniplus cartridges are compatible with the OEM TIJ 2.5 standard while offering a more competitive procurement cost.

Myth 3: "TIJ only works on paper."

With solvent-based ink, TIJ adheres firmly to metal, glass, plastic, aluminum foil, and other non-porous substrates. This is an ink selection issue, not a technology limitation.

Myth 4: "TIJ resolution isn't good enough."

TIJ 2.5 supports up to 600 DPI — fully sufficient for reliable 1D barcode and QR code scan readability.

Myth 5: "Cartridge changes are too disruptive."

TIJ cartridge replacement takes seconds, with no printhead cleaning or solvent refilling required. Downtime is minimal compared to the daily maintenance routines required by CIJ systems.
